Document Type : Original Research Article

Authors

1 MCS, National University of Sciences and Technology, Islamabad, Pakistan

2 Department of Studies in Mathematics University of Mysore, Manasagangotri, India

3 Department of Mathematics and Statistics, The University of Lahore, Lahore, 54000, Pakistan

4 Faculty of Education, Van Yuzuncu Yıl University, Zeve Campus, Tuşba, 65080, Van, Turkey

Abstract

In this object, we present some new formulas of the reduced reciprocal Randić index, the arithmetic geometric 1 index, the SK, SK1, SK2 indices, first Zagreb index, the general sum-connectivity index, the SCI index and the forgotten index. They were utilized for new degree-based topological indices via M-polynomial. We retrieved these topological indices for H-Naphtalenic nanotubes.

Graphical Abstract

Some new degree based topological indices of h-naphtalenic graph via M-polynomial approach

Keywords

Main Subjects

Introduction

Chemical graph theory is a branch of mathematics, which combines chemistry and graph theory. Graph theory is a mathematical imitation of molecules to construct insight into the properties of those chemical mixtures. Each carbon atom forms four bonds in a stable organic compound, such as ethane, ethene (ethylene), and ethyne (acetylene). The carbon atom in ethene forms four single bonds, each of the three hydrogen atoms and one to the neighboring carbon atoms of each hydrogen atom has one chemical bond.

The topological indices assist in the physical features, chemical and bio-logical reactivity. The topological index is surveying the principal part that shows each molecular structure of the real number, implemented as a descriptor of the molecule under checking. This graphical representation of topological indices shows the dependency of a confirmed index on the structure.

A nanotube is chiefly sheets build up into a tube. Nanotubes concern different graph-theoretic frameworks in graph theory, like polynomials and topological indices. H-Naphtalenic is rising in the same way by a sheet cover with squares, hexagons and octagons. The topological indices are also computed via M-polynomial. Several works have already been done in this area [1,2,3-6,22,23].

The M-polynomial introduced by Emeric Deutsch and Sandi Klavžar [7] is defined for a graph G as the first topological index invented by wiener [8]. Topological indices are used in the development, quantitative activity and also other properties of molecules correlate in chemical structure. The connection between atoms is shown as topological indices of different chemical compound such as boiling point, the heat of formation, heat of evaporation, surface tension, vapor pressure and etc. Now we define some topological indices.









In 2015 [9], I. Gutman ed ul., invented a reduced reciprocal index. The reduced reciprocal Randić (RRR) index is a molecular structure descriptor (more precisely, a topological index), which is helpful for the divine level of enthalpy creation and the usual boiling point of isomeric octanes.

In 2016 [10]. V. Shegehalli and R. Kanabur are used arithmetic geometric index.

The SK, SK1, SK2 indices are defined as:

In 2016 [10] Shegehalli and Kanabur used SK, SK1, SK2 indices.

Where

H-naphtalenic nanotube

Carbon nanotubes were initially used in 1991, and one-dimensional material appeared. Nanotubes are created by rolling up sheets into a tube. The nanotubes are largely studied in graph theory such as polynomials and topological indices. H-Naphtalenic nanotubes are formed in same way with sheets covered by squares, hexagons and octagons.

Let HNntmn be a H-Naphtalenic nanotube then for m; n≥1, M-polynomial of HNntmn is given as:

M(HNntmn;x;y)=8nx2y3+5n(3m-2)x3y3

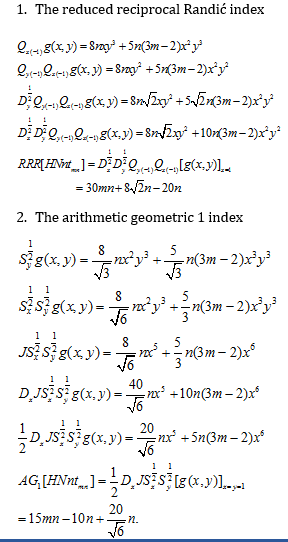

Topological indices of H-Naphtalenic nanotube via M-polynomial

Theorem 3.1. Let HNnt be a H-Naphtalenic nanotube then for m; n≤ 1, M-polynomial is given as:

M(HNntmn;x;y)=8nx2y3+5n(3m-2)x3y3:

Proof. Let HNnt be a H-Naphtalenic nanotube. The M-polynomial is given as:

M(HNntmn;x;y)=8nx2y3+5n(3m-2)x3y3

Conclusion

The induction of new closed formulas was to count the topological indices via M-polynomial. In this study, we determined M-polynomials of H-Naphtalenic (HNntmn). These topological indices are useful for the augury plan of physical features, biological activities, and chemical reactivates of the substance.

Acknowledgments

The authors would like to thank the reviewers for their helpful suggestions and comments.

Orcid:

Farkhanda Afzal: https://orcid.org/0000-0001-5396-7598

Ammar Alsinai: https://orcid.org/0000-0002-5221-0574

Deeba Afzal: https://orcid.org/0000-0001-5268-7260

Murat Cancan: https://orcid.org/0000-0002-8606-2274

----------------------------------------------------------------------------------

How to cite this article: Farkhanda Afzal*, Ammar Alsinai, Mohammad Zeeshan, Deeba Afzal, Faryal Chaudhry, Murat Cancan. Some new degree based topological indices of h-naphtalenic graph via M-polynomial approach. Eurasian Chemical Communications, 2021, 3(11), 800-805. Link: http://www.echemcom.com/article_137562.html

----------------------------------------------------------------------------------

Copyright © 2021 by SPC (Sami Publishing Company) + is an open access article distributed under the Creative Commons Attribution License(CC BY) license (https://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.



[1] M. Cancan, S. Ediz, H. Mutee-Ur-Rehman, D. Afzal. J. Inf. Opt. Sci., 2020, 41, 1117-1131. [crossref], [Google Scholar], [Publisher]
[2] S.M. Kang, W. Nazeer, W. Gao, D. Afzal, S.N. Gillani, Open Chem., 2018, 16, 201-213. [crossref], [Google Scholar], [Publisher]
[3] A. Alsinai, A. Alwardi, N.D. Soner, Int. J. Anal. Appl., 2021, 19, 1-19. [Pdf], [Google Scholar], [Publisher]
[4] A. Alsinai, A. Alwardi, M.R. Farahani, N.D. Soner, Eurasian Chem. Commun., 2021, 3, 219-226. [crossref], [Google Scholar], [Publisher]
[5] A. Alsinai, A. Alwardi, N.D. Soner, Proc. Jangjeon Math. Soc., 2021, 24, 375-388. [crossref], [Google Scholar], [Publisher]
[6] A. Alsinai, A. Alwardi, N.D. Soner, J.D. Math. Sci. Cryp., 2021, 24, 307-324. [crossref], [Google Scholar], [Publisher]
[7] E. Deutsch, S. Klavžar, Iranian J. Math. Chem., 2015, 6, 93-102. [crossref], [Google Scholar], [Publisher]
[8] H. Wiener, J. Am. Chem. Soc., 1947, 69, 17-20. [crossref], [Google Scholar], [Publisher]
[9] B. Furtula, I. Gutman, J. Math. Chem., 2015, 53, 1184-1190. [crossref], [Google Scholar], [Publisher]
[10] V. Shigehalli, R. Kanabur, J. Comp. Math. Sci., 2015, 6, 19-24. [Pdf], [Google Scholar], [Publisher]
[11] A. Miličević, S. Nikolić, N. Trinajstić, Mol. Divers., 2004, 8, 393-399. [crossref], [Google Scholar], [Publisher]
[12] Z. Du, B. Zhou, N. Trinajstić, Appl. Math. Let., 2011, 24, 402-405. [crossref], [Google Scholar], [Publisher]
[13] D. Afzal, S. Hussain, M. Aldemir, M.R. Farahani, F. Afzal, Eurasian Chem. Commun., 2020, 2, 1117-1125. [crossref], [Google Scholar], [Publisher]
[14] F. Afzal, S. Hussain, D. Afzal, S. Hameed, Open Chem., 2020, 18, 1362-1369. [crossref], [Google Scholar], [Publisher]
[15] F. Afzal, S. Hussain, D. Afzal, S. Razaq, J. Inf. Opt. Sci., 2020, 41, 1061-1076. [crossref], [Google Scholar], [Publisher]
[16] D. Afzal, S. Ali, F. Afzal, M. Cancan, S. Ediz, M.R. Farahani, J. D. Math. Sci. Cryp., 2021, 24, 427-438. [crossref], [Google Scholar], [Publisher]
[17] M. Cancan, D. Afzal, S. Hussain, A. Maqbool, F. Afzal, J. D. Math. Sci. Cryp., 2020, 23, 1157-1171. [crossref], [Google Scholar], [Publisher]
[18] F. Afzal, S. Hussain, D. Afzal, S. Razaq, J. Inf. Opt. Sci., 2020, 41, 1061-1076. [crossref], [Google Scholar], [Publisher]
[19] A.J.M. Khalaf, S. Hussain, D. Afzal, F. Afzal, A. Maqbool, J. D. Math. Sci. Cryp., 2020, 23, 1217-1237. [crossref], [Google Scholar], [Publisher]
[20] S. Hussain, F. Afzal, D. Afzal, M.R. Farahani, M. Cancan, S. Ediz, Eurasian Chem. Commun., 2021, 3, 180-186. [crossref], [Google Scholar], [Publisher]
[21] D.Y. Shin, S. Hussain, F. Afzal, C. Park, D. Afzal, M.R. Farahani, Frontier Chem., 2021, 8, 613873. [crossref], [Google Scholar], [Publisher]
[22] A. Alsinai, A. Alwardi, H. Ahmed, N.D. Soner, J. Prime Res. Math., 2021, 17, 73-78. [Pdf], [Google Scholar], [Publisher]
[23] S. Javaraju, A. Alsinai, A. Alwardi, H. Ahmed, N.D. Soner, J. Prime Res. Math., 2021, 17, 101-110. [Pdf], [Publisher]
