Document Type : Original Research Article
Authors
Department of Pharmacy, College of Science, University of Kufa, Kufa, Iraq
Abstract
Heterogeneous photocatalysis is an effective wastewater treatment technology for the removal of tissue effluents and some contaminants. Among the effective catalytic treatments, hybrid semiconductor photocatalysts have been widely applied and have received more attention in the past few decades where particles and nanocomposites (ZnO and ZnO/CdS) were prepared by hydrothermal method from raw materials, and its photocatalytic activity was studied using reactive Blue 4 dye under the influence of ultraviolet radiation. The prepared nanocomposites are characterized using various physicochemical techniques including X-ray diffraction (XRD), Field emission scanning electron microscopy (FE-SEM), and Transmission electron microscopes (TEM) analyses. Their photodegradation results revealed that ZnO doped ZnO/CdS nanocomposites show impressive activity towards photodegradation of (Reactive Blue 4) dye. The prepared kinetic diagrams showed a pseudo-first-order interaction. The results of the dissociation efficiency of the dye solution (Reactive Blue 4) dye with the ZnO surface were greater than the surface of ZnO/CdS nanocomposite, and the rate constant was calculated for each of them.
Graphical Abstract
Keywords
Main Subjects
Introduction
Due to the rapidly expanding population and the increasing incidence of contaminants, there is an urgent demand for clean water resources as one of the prerequisites of our everyday lives [1]. Massive amounts of synthetic dyes, which are chemically and physically stable chemicals and unsafe for the environment, are utilized in the textile industry. Since it is stable and soluble in water, synthetic colors accumulate in wastewater and industrial effluent [2-4].
Reactive Blue 4 (RB 4) is one of the hazardous substances in water. RB 4 is an anionic dye used in a variety of industries, including the textile and wood industries. The RB4 degradation in water is a significant problem in the industry since the inability to remove it has put the environment and living things in danger. Several methods for removing RB 4 from aqueous environments, including adsorption [5] biosorption mechanism, membrane, and photocatalytic process have recently been discovered. The majority of conventional methods for RB 4 removal have drawbacks since they produce secondary pollutants including adsorption and they are either expensive, like the membrane method, or use a biosorption mechanism [6]. Yet, due to its distinct advantages without manufacturing secondary pollutants, the photocatalytic approach for the breakdown of dangerous substances becomes relevant [7].
The photocatalyst converts the toxic chemical into beneficial byproducts like water and carbon dioxide [8]. It is simple to use the photocatalyst repeatedly, especially when it possesses magnetic qualities. Physical, chemical, and biological approaches to conventional water treatment have been developed to manage textile wastewater [9]. However, due to dyes' highly water-soluble and bio-persistent nature, these approaches are damaging and ineffectual in their total destruction [10]. To decompose the organic pollutants and save the environment from their harmful consequences, a treatment technique that is environmentally benign, clean, effective, and cost-effective is urgently needed [11]. A possible method for treating sewage is photocatalysis. The photocatalytic oxidation approach, which is recognized as a safe and efficient method for treating wastewater, can convert organic pollutants adsorbed on the catalyst surface into benign carbon dioxide, water, and inorganic salts without causing secondary contamination [12].
ZnO is one of the extensively researched semiconductor photocatalysts due to its low cost, nontoxic makeup, high quantum efficiency, and environmental friendliness [13-15]. A possible method for treating sewage is photocatalysis. The photocatalytic oxidation approach, which is recognized as a safe and efficient method for treating wastewater, can convert organic pollutants adsorbed on the catalyst surface into benign carbon dioxide, water, and inorganic salts without causing secondary contamination [12]. ZnO/CdS nanocomposites [16] have been used for photocatalytic applications because they improve UV light absorption and offer efficient charge transport. The highest amount of charge carriers resides at the surface of nanocatalysts due to these morphologies' dimensional anisotropy, which also causes a flow of charge along the nanocatalyst surface. High photoactivity is further made possible by its facilitation of high charge separation and minimal recombination [17]. With a band gap of 2.4 eV and a strong optical absorption coefficient, CdS is a transition metal sulfide [18]. According to numerous reports, the formation of binary composites, such as ZnO-CdS, is to blame for the increase in photocatalytic activity in the visible range [19]. Nanocomposites have a number of advantages, including high charge separation, a substrate for heterogeneous nucleation, high charge carrier mobility, and an extended charge carrier life [20].
In this study, preparation of ZnO and ZnO/CdS nanocomposite, characterization methods, and the experimental setup for performing a thorough photocatalytic degradation process are all covered in this article, and they used to photocatalytic effect on RB 4 dye.
Experimental
Materials and methods
Reactive Blue 4 (RB4) (Santa Cruz Biotechnology 95%) was used for photocatalytic degradation studies. The chemical structure of RB4 is given in Scheme 1. Materials Zinc Nitrate Zn(NO3)2.6H2O and sodium hydroxide (NaOH) pellets from Sigma-Aldrich. All chemicals used were analytical grade without further purification. Distilled water was used throughout the experiment. Cadmium nitrate tetrahydrate [Cd(NO3)2.4H2O], thiourea (CH4N2S), and hexamethylenetetramine [(CH2)6N4, HMT] and polyvinyl pyrrolidone (PVP) was purchased from Sigma Aldrich.
Synthesis ZnO of nanoparticles using the hydrothermal method
The hydrothermal process is used to create the zinc oxide nanoparticles. Sodium hydroxide (NaOH) pellets and zinc nitrate [Zn(NO3)2.6H2O] pellets are used. Deionized water (DIW) was utilized throughout the experiment to dilute all the chemicals needed to create zinc oxide nanoparticles. The nanoparticles were created using the hydrothermal technique. In 30 mL of deionized water, 0.5 M zinc nitrate solutions were made and agitated for 30 minutes. 5 M NaOH solution in the meantime was made by swirling 30 mL of deionized water for the same amount of time that weighted NaOH grains were mixed. The prior solution is gradually supplemented with it while being constantly stirred, up until the reactants' pH reaches 12 [21-26]. This solution mixture was put into a 70 mL Teflon-lined stainless-steel autoclave and under 100°C for 2 hours. After that, the autoclave was removed and left to gradually cool to ambient temperature. The finished product was then dried and put together after being washed repeatedly with deionized water.
Synthesis ZnO@CdS of nanocomposite using the hydrothermal method
To create the ZnO/CdS nanocomposite, 0.0538 g of ZnO nanoparticles were added to a mixture of 0.0388 g Cd(NO), 3.99 g PVP, and 0.0150 g SC(NH2)2. After thoroughly combining all ingredients, the mixture was immediately transported to an autoclave made of stainless steel that was lined with teflon (100 mL). The hydrothermal synthesis was performed at 120°C for 2 hours. After the installation period is through, the product is separated using a centrifuge, cooled at room temperature, washed with distilled water, and dried in an oven at 70ᵒC [27].
Results and discussion
XRD analysis
The Figure 1 depicts the XRD pattern for ZnO NPs. The chemical contains nanoparticles up to big and identifiable spectrum peaks. The study of the XRD result determined the density and complete breadth at half the maximum size and position. Peaks were seen in nine diffractions, at 2, 31.67, 34.34, 36.20, 47.46, 56.54, 62.83, and 67.91ᵒ, respectively, corresponding to the crystal levels of (100), (002), (101), (102), (110), (103), and (112). At (101) peaks, broad neutrality and a sharper peak were seen without the peak twisting. These numerous peaks revealed crystals oriented randomly. The Debye-Scherer formula produced ZnO NPs with an average crystal volume of (D) indicated the ZnO powder with hexagonal nanostructures [28]. The ZnO nanoparticles' acquired XRD result is in good agreement with prior literature reports. The data XRD breakdown shows that the ZnO NPs sample has a high degree of crystalline quality due to its narrow and strong diffraction peaks, particularly in (100), (002), and (101).
The ZnO/CdS nanocomposite's crystalline structure was ascertained using X-ray diffraction investigation, as shown in Figure 2. The XRD pattern of pure ZnO exhibits reflections in accordance with the material's well-known hexagonal symmetry (JCPDS: 36-1451) [29]. According to XRD analysis of ZnO@CdS, the diffraction peaks of CdS can be attributed to a mixture of cubic (JCPDS: 10-0454) and hexagonal (JCPDS: 41-1049) phases. Peaks for both of the components (ZnO and CdS) can be seen in the ZnO-CdS complex, clearly demonstrating the complex's creation. There are diffraction peaks in the ZnO-CdS composite nanostructures centered at ZnO hexagonal phase may be found at 31.9, 34.7, 36.5, 48.4, and 57.1°, while CdS can be found at 25.3, 26.8, 28.6, 44.4, and 52.8°, corresponding to the (100), (002), (101), (102), and (110) crystal planes. It should be noted that only the hexagonal phase of CdS can be accurately mapped to the CdS peaks in the composite. In particular, the presence of three peaks in the composite between 25 and 30°, which correspond to the (100), (002), and (101) levels of hexagonal symmetry, rather than the single peak in CdS at 26.8°, which corresponds to the (111) level cubic symmetry, shows that hexagonal symmetry makes up the majority of CdS presence in the composite. This can be as a result of aided growth.
FE-SEM images of ZnO nanoparticles are depicted in Figure 3. It has been observed that the average diameter of ZnO was obtained 23.63 nm.
Figure 4 displays FE-SEM pictures of the ZnO@CdS nanocomposite's structural details.
The size of the nanoparticles ranges almost entirely between 10-71.5 nm and has an average diameter of 45.49 nm. Likewise, the images display the size, form, and manner of gathering spherical nanoparticles.
TEM technology was used to examine produced nanoparticles and nanocomposite materials. ZnO, and ZnO@CdS formations as seen in TEM pictures. ZnO nanoparticles have a spherical form and range in size from 17.99 to 77.40 nm, as illustrated in Figure 5. The ZnO@CdS nanocomposite's nanoparticles are shown in Figures 6 and 7 in terms of their size and form 13-71.12 nm.
Images TEM of ZnO@CdS nanocomposite
The presence and absence of the nanomaterial surface and the nanocomposite surface as a catalyst, in which the dye dissociation speed was tested in three stages, are factors affecting the photodegradation of RB4 dye and the conditions affecting the photodegradation speed. The initial stage in the dark box was the presence of RB4 dye as well as the catalyst only after determination and calculation of the best surface weight, best dye concentration, and the best pH medium. The second phase. In the third step, the dissociation rate and preferred method are studied with respect to the catalyst surface and the UV light. The surface of nanomaterials and nanocomposites (ZnO and ZnO/CdS) generated for the investigation were compared with dye dissociation, and the effect of temperature on how quickly the RB4 dye separated from the nanocatalyst surface. For materials and nanocomposites prepared with the dye according to the different reaction conditions that were mentioned, as their values were calculated after adjusting the reaction conditions, the standard curves depicting the dissociation of the dye were drawn in the three stages that were mentioned, where the drawing was between the value of C/C₀, and the time once, between lnC/C₀, and again. Figures 8 and 9 depict the dye dissociation reaction for the two surfaces, while the catalyst is present but without radiation. Due to the adsorption of RB 4 dye on the surfaces of the catalyst nanomaterials, the ZnO surface exhibits the greatest reduction in the C/C₀ value when compared to the binary surface ZnO/CdS, which is dependent on the catalyst nanomaterial's surface area. The kind of catalyst also plays a part in how the concentration of the RB 4 dye solution changes over time when ultraviolet light radiation is present. In addition, each of the produced catalysts has an energy band gap, which is highest for the ZnO catalyst surface from the ZnO/CdS binary surface.
In the second stage of the dye's photodegradation reaction, shown in Figure 10, the dye solution was employed at two concentrations (10 ppm and 15 ppm) with UV light irradiation, but without the usage of the nanocatalyst surface (the catalyst), which indicates a minor drop in the dye's C/C₀ value.
Figure 11 illustrates the dye dissolution in the presence of a nanocatalyst surface and an ultraviolet (UV) radiation source during the third stage. Although the two figures depict a comparison of the two surfaces and their choice, as determined by the gradation below: ZnO >ZnO@CdS. In terms of the rate and volume of RB4 dye dissociation, the single nano-surface performs better than the bilateral. When comparing the stages of the reactions in the dark and under the influence of ultraviolet light, which were illustrated in the previous figures, where the change was in the dye's concentration, the photolysis of the RB4 dye with the individual metal oxides ZnO with the binary and nanocomposites ZnO@CdS, respectively, But, in the dark, it is also low because of the dye's adsorption on the surface of the catalysts, which depends on surface area, along with a drop in concentration of the dye in the presence of the surface. While the dye concentration decreases when the surface is present and ultraviolet radiation is present, it is also lower in the dark due to the dye's adsorption on the surface is absent, the effect is quite small, but when UV catalysts, which are surface area-dependent. When ultraviolet radiation and the catalyst surface are combined, the dye dissolves with a high degree of efficiency on the surfaces of the catalysts. Efficiency is dependent on the catalyst surface areas and the rate at which the dye dissociates on those surfaces.
Effect of different parameters on photocatalytic degradation of RB 4 Solution
Effect of RB 4 dye concentration
The impact of adjusting the RB 4 dye solution's concentration on the effectiveness of photocatalytic degradation to extract the best concentration of the dye to use later to extract the best weight for the nanocatalyst surface, the process under the influence of ultraviolet radiation was tested using a constant weight of the manufactured nano-surface (ZnO and ZnO/CdS) (0.1 g). The impact of each dye solution concentration and the catalyst nanosurface weight on the dye solution's photocatalytic degradation efficiency with a ZnO surface under constant temperature and surface weight conditions with varying dye solution concentrations, where concentrations ranged from 5-25 ppm. We see that the dye solution's best (87%) at a concentration of 15 ppm. On the photocatalytic degradation efficiency of the dye solution, each dye solution concentration and the weight of the catalyst nanosurface are important factors. Table 1 displays the P.D.E. of the dye solution with a ZnO surface under constant temperature and surface weight conditions with shifting dye solution concentrations, where concentrations ranged from 5-25 ppm. The best P.D.E. dye solution with a concentration of 87% is noted 15 ppm. Table 1 displays the P.D.E. values for each dye concentration together with its corresponding rate constant values. With regard to the dye concentrations utilized in terms of their dissociation rates with the catalyst nanosurface effective, we observe from the obtained results that the value of the rate constant K (0.0781 min-1) is larger at a concentration of 15 ppm.
As for the surface of the ZnO/CdS nanocomposite with the dye solution, the best concentration was (10 ppm). As it can be seen in Table 2, the dye solution has high photocatalytic degradation efficiency (42.68%) at a concentration of 10 ppm and that the rate constant K is also higher at this concentration (0.0958 min-1) than it is at the other concentrations.
Effect of catalyst weight
The decomposition rate was examined using various catalyst weights in the range of (0.05-0.15 g) under the influence of ultraviolet radiation. The catalyst surface works to reduce the activation energy, and thereby it is possible to obtain more molecules with activation energy, and then the reaction rate increases. Little quantities are used when catalysts are utilized. After a certain point, increasing the catalyst quantities utilized in the reaction does not result in an increase in reaction rates [30]. Table 3 displays the effectiveness of the RB4 dye's photocatalytic degradation after extracting it at its highest concentration (15 ppm) using surface ZnO NPs of various weights while subjected to UV radiation for 85 minutes. When weighing (0.075 g), the highest value of photocatalytic degradation efficiency (82.33%), and the rate constant k (0.05942 min-1). The lowest value of k is (0.0272 min-1), obtained when utilizing the surface weight, while the lowest value of photocatalytic degradation efficiency (55.1%) was achieved when weighing (0.15 g). The rise in the weight of the catalyst surface caused an increase in the active sites on the catalyst surface, which is what caused the values of P.D.E and k to increase and decrease. A higher than necessary concentration of the catalyst will result in more suspended particles in the dye solution, which will subsequently turbidize the suspension and reduce penetration. Radiation, followed by light scattering and reduced light penetrating the remedy [31,32]. Moreover, utilizing more catalyst surfaces reduces the activation of the activated molecules by causing them to collide with the ground state molecules, which dominates the process and slows down the rate of the reaction [33]. For the produced catalyst nanosurface exposed to the UV light, Table 3 displays the P.D.E. values and the K values of the ZnO surface with the RB 4 dye solution at various weights.
The P.D.E. values and rate constant K values of the ZnO/CdS nanocomposite under the influence of UV irradiation are shown in Table 4. After extracting the most amount of RB 4 dye possible from the ZnO/CdS nanocomposite's surface at 10 ppm. Where the rate constant K (0.0253 min-1) and the maximal value of P.D.E. were at the same surface weight of 0.05 g, respectively. When the surface is weighed, the rate constant K has the lowest value (0.0115 min-1), and the lowest value of P.D.E is at a surface weight of 0.15 g. The reaction took place for all weights in 75 minutes.
Effect of pH for RB 4 dye solution

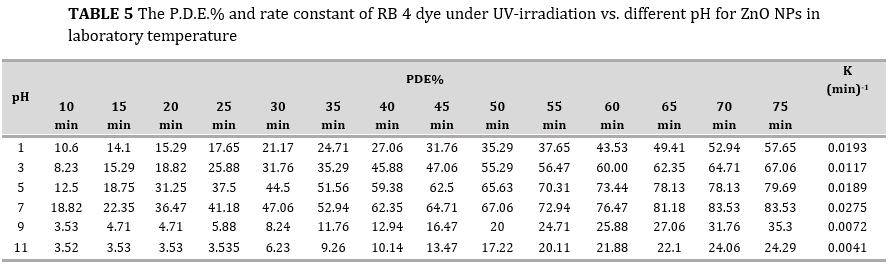

To better understand how the pH function affects how the adsorption interacts with the adsorbent surface and how to employ adsorbents, different media were used. The pH variation in the dye solution has a significant impact on the adsorption capacity during the process [34]. The values (P.D.E%) and the rate constant K are both impacted by the pH of the dye solution, which is a significant influence. After obtaining the best weight of the catalyst surface and the best rate constant, the effect of pH values in the range of 1-11 on the values of P.D.E.% and the rate constant K for the prepared nanoparticle and nanocomposite used in the photocatalytic degradation reaction of the two surfaces (ZnO and ZnO/CdS) was examined. The concentration of the RB 4 dye solution on each surface that will be exposed to UV light. The photocatalytic effectiveness of the RB 4 dye for each of the two surfaces is displayed in the tables below at various pH levels. The highest P.D.E.% (83.53%) and K value (0.0275 min-1) for the ZnO catalyst nanosurface with RB4 dye solution were found at pH value (7), while the lowest (P.D.E.%) (24.29%) and K value (0.0041 min) were found at pH value (11). According to the Table 5. According to the results for the ZnO surface, the point zero charges PZC of the ZnO surface is pH = 9, and at this pH, the ZnO gains ZnO has a positive charge because of the protons of the functional group. At pH = 7, we see an increase in the values of P.D.E.% and the values of K. In excess of this pH, the ZnO surface is negatively charged [35] and the zero-point charge Finding the point at which the positive charge and negative charge sites on the surface of ZnO are equal requires knowledge of PZC. This can be explained by the fact that ZnO has a neutral surface charge because, at a certain pH level, ZnO has a net zero charge on its surface, which lessens the equal electrical forces acting on its surfaces. This means that if the pH is higher than the pH of P.Z.C., the surface charge is more negative, and if the number is higher, the surface charge is more positive. The pH is lower than P.Z.C pH [36].
The results are presented in Table 6. For the ZnO/CdS nanocomposite surface, the maximum values were for P.D.E.% (53.191%) and K (0.0148 min-1) value at pH = 1 and the lowest value was for P.D.E.% (12.5%) and K (0.0021 min-1) with pH value = 11. The zero-charge point PZC of ZnO/CdS surface is pH = 6, and since the charge of dye RB4 is negative, the acidic medium is the best medium for the photodegradation of the dye (P.D.E.%). This is why for ZnO/CdS surface, the best and highest values of P.D.E.% and K were obtained in a strongly acidic medium (pH = 1).
Effect of temperature on photo degradation of RB 4 dye
At 25, 30, 35, and 40 C, the impact of temperature on photodegradation was assessed. According to the first-order kinetic rate constants at different temperatures, the apparent activation energy for the decomposition of RB4 dye was also determined according to Arrhenius equations [37,38].
K = A exp (-Ea/RT) (3-1)
The values of P.D.E.% and k values for each were calculated after research was done on the impact of temperature on the photocatalytic activity of the produced catalysts under the UV illumination for 75 minutes, the P.D.E was raised from 61.403% to 88.612%, and the k was raised from 0.01-0.0141 min-1 when the temperature of RB 4 solution was raised. The same result is observed when ZnO/CdS is used, where (P.D.E.) is also increased from 34.214% to 71.929% and k (0.015-0.0166 min-1), in conjunction with raising the temperature of the RB 4 solution. The effect of temperature on the photodegradation of RB 4 dye in the presence of the as-prepared catalysts is probably caused by an increase in the dye frequency and hydroxyl radical molecules colliding at high temperatures, where the photodegradation is maximal and low at lower temperatures, as well as a decrease in the decomposition efficiency of photosynthesis. This is due to the fact that the dye molecule's reaction rate increases with the photocatalyst's surface. Consequently, the absorption increases which facilitates the photodegradation of the colors. All thermal reactions have an activation energy that falls between (7.53975-15.1706367) KJ. Mol-1. The Table 7 provides a summary of the acquired results.
Conclusion
1- The effectiveness of the photocatalytic process technology for treating pollutants, in general, and wastewater, in particular.
2- The use of nanocatalysts in daily life applications because of their broad properties in terms of surface area and small size.
3- Production of nanomaterials by simple chemical methods.
4- The effectiveness of the ZnO catalyst nanosurface compared with the ZnO/CdS nanocatalyst surface in the photodegradation reaction.
5- The effect of the catalysts prepared in the study (ZnO, ZnO /CdS) on the decomposition of dyes, including (Reactive Blue 4) in the presence of ultraviolet radiation.
Acknowledgements
The authors thank College of Science, University of Kufa, for all supports.
Conflict of Interest
The authors declare no conflicts of interest.
